HAIKON DS-2DE5120I-AE 1,3MP SD CART OUTDOOR IR IP SPEEDDOME 150MT

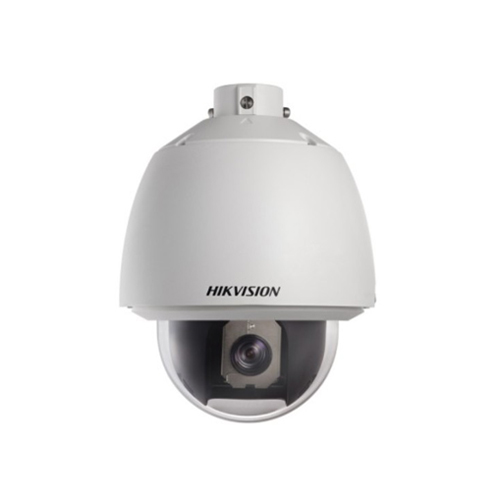

HAIKON DS-2DE5184-A 2MP GECE GÖRÜŞLÜ SPEED DOME PTZ IP KAMERA HAIKON DS-2DE5184-A 2MP GECE GÖRÜŞLÜ SPEED DOME PTZ IP KAMERA 5,800.00 5,400.00
HAIKON DS-2DE4220IW-D 2MP CMOS 20X OPTİK ZOOM 100Mt. IR MESAFESİ OUTDOOR IR IP SPEED DOME HAIKON DS-2DE4220IW-D 2MP CMOS 20X OPTİK ZOOM 100Mt. IR MESAFESİ OUTDOOR IR IP SPEED DOME 4,700.00 4,200.00
-7%
HAIKON DS-2DE5120I-AE 1,3MP SD CART OUTDOOR IR IP SPEEDDOME 150MT 1

HAIKON DS-2DE5120I-AE 1,3MP SD CART OUTDOOR IR IP SPEEDDOME 150MT

Henüz yorum yapılmadı.

5,800.00 5,400.00

1.3 MP Network Harici IR PTZ Kamera

1/2,8″ PS CMOS,20X Optik, 1280x960px,150 mt IR

Aydınlatma Mesafesi,Day/nıght (ICR) BLC,

7 kademeli Beyaz Dengesi, AGC, Auto Focus, 3D-DNR,

DWDR, 256 preset, Ses Giriş/Çıkışı SDCard ~64 GB, IP66,

High-PoE & 24VAC.

İstek Listeme Ekle
,
  • Açıklama
  • Yorumlar (0)

Ürün Açıklaması

Camera
Image Sensor: 1/2.8″ Progressive Scan CMOS
Effective Pixels: 1280(H) × 960(V)/1920(H) × 1080(V)
Signal System: PAL/NTSC
Minimum Illumination: F1.5, AGC On: Color: 0.02 lux, B/W : 0.002 lux, 0 lux with IR
White Balance: Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp
AGC: Auto/Manual
S/N Ratio: ≥ 52dB
BLC: ON/OFF
HLC: Support
Smart defog: Support
WDR: Support
Shutter Time: 1-1/10,000s
Digital Zoom: 16X
Privacy Masking: 8 privacy masks programmable
Auto Focus: Auto / Semi-automatic / Manual
Lens
Focal Length: 4.7-94.0mm, 20x
Zoom Speed: Approx.3s(Optical Wide~Tele)
Angle of View: 58.3-3.2 degree (Wide~Tele)
Minimum Working Distance: 10~1,000mm(Wide~Tele)
Aperture Range: F1.6~F3.5
Pan & Tilt
Pan Range: 360° continuous
Pan Speed: Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
Tilt Range: -15°-90° (Auto Flip )
Tilt Speed: Tilt Manual Speed: 0.1°~200°/s, Tilt Preset Speed: 200°/s
Proportional Zoom: Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset: 300
Patrol: 8 patrols, up to 32 presets per patrol
Power loss recovery: Support
Park Action: Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan /

Panorama scan
PTZ Position Display: ON/OFF
Freeze Frame: Support
Infrared
IR irradiation distance: 150m
IR irradiation angle: Adjustable by zoom
Alarm
Alarm Input: 2
Alarm Output: 1
Alarm Actions: Preset, Recording, Relay output, Upload center, Upload FTP, Email linkage
Input & Output
Monitor Output: 1.0Vp-p, 75 Ohm, BNC
Audio Input: 1 Mic in/Line in interface
Line input: 2-2.4V[p-p]; output impedance: 1KΩ, ±10%
Audio Output: 1 Audio output interface
Line level, impedance: 600Ω
Network
Ethernet: 10Base -T, /100Base-TX, RJ45 Connector
Max.Image Resolution: DS-2DE5120I-AE:1280×720;
DS-2DE5220I-AE: 1920×1080
Frame Rate: DS-2DE5120I-AE:
50Hz:25fps(1280×960), 25fps (1280×720), 60Hz:30fps(1280×960), 30fps (1280×720);
DS-2DE5220I-AE:
50Hz: 25 fps (1920×1080), 25 fps (1280×720)
60Hz: 30 fps (1920×1080), 30 fps (1280×720)
Main Stream: DS-2DE5120I-AE:
50Hz:25fps(1280×960), 25fps (1280×720), 60Hz:30fps(1280×960), 30fps (1280×720)
DS-2DE5220I-AE:
50Hz: 25 fps (1920×1080), 25 fps (1280×720)
60Hz: 30 fps (1920×1080), 30 fps (1280×720)
Sub Stream: 50Hz: 25fps(704×576), 25fps (352×288), 25fps (176×144)
60Hz: 30fps(704×480), 30fps (352×240), 30fps (176×120)
Image Compression: H.264 / MJPEG
ROI encoding: Support 4 areas with adjustable levels
Audio Compression: G.711ulaw/G.711alaw/G.726/MP2L2/G.722
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
No. of Simultaneous Users: Up to 20 users
Dual Stream: Support
Mini SD Card: Support up to 128GB Micro SD/SDHC/SDXC card. Support Edge recording
User/Host Level: Up to 32 users,3 Levels: Administrator, Operator and User
Security Measures: User authentication (ID and PW),
Host authentication (MAC address)
IP address filtering
EZVIZ: Support
Client GUI
Camera Control: Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display: Time: Week: Date, 6 formats on the Client
Client: Support iVMS-4200
Web Browser: IE 7 , Chrome 18  , Firefox 5.0  , Safari 5.02
General
Menu Language: English
Power Supply: 24 VAC & Hi-PoE
Power Consumption: Max.30W
Working Temperature/Humidity: -30°C ~ 65°C (-22°F ~ 149°F)
Protection Level: IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting: Various mounting modes optional
Dimensions: Φ266.6(mm)×365.2(mm)
Weight (approx.): 4kg (8.81lbs)
Mount Option: Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box;
Swan-neck mount: DS-1619ZJ
